- Hub Face measures 88 inches - Hub Face measures from the face of one hub to the face of the other hub (the face is where the wheel meets the hub).
- Overall length measures 93 inches tip to tip.
- Spring seats welded at 72 inches - Spring Center is measured from the center of one spring to the center of the other, across the axle.
- Features the EZ-Lube system.
- Comes with spring seats welded, just mount your axle with the appropriate U-bolt kit - No more drilling!
- 2 3/8 inch diameter Heavy Duty 3/16 inch thick tubing.
- Uses inner bearing # 68149 - 1 3/8 inch inner diameter.

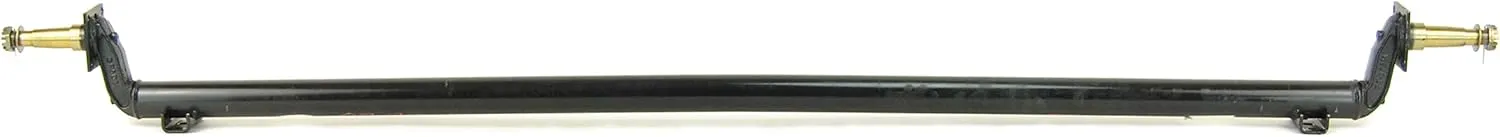

Suitable for freshwater boat trailers and ideal for utility or landscaping trailers, this axle has a 3,500lb capacity and is made with 3/16 inch steel wall thickness, measures 2 3/8 inch in diameter and features #84 Spindles welded into a 4 inch drop beam. Comes with spring seats welded at 72 inches.
