- APPLICATIONS: ideal for high temperature drainage tasks including boiler blow-down pits; utility/transformer vaults, hot water washdown collection sumps and transfer, and steam condensate sump pits
- BUILT TO LAST: epoxy-coated cast iron housing and volute; non-clog high-temperature nylon impeller with threaded brass insert; steel shaft; rated for continuous duty
- ENERGY-EFFICIENT MOTOR: 115 Volt, 60 Hz, oil-filled, thermally protected Permanent Split Capacitor (PSC) motor; 6.5 running Amps, 21 starting Amps; 650 Watts; CSA listed in the USA and Canada
- AUTOMATIC HIGH TEMPERATURE EFFLUENT PUMP: handles up to 200°F liquids and semi-solids up to 3/4-inches in diameter; pump starts when liquid reaches 9 to 14 inches; shuts off at 2 to 4 inches
- SPECIFICATIONS: 115 Volts; 60 Hz; 1/3 HP; 6.5 running Amps; 21 starting Amps; 650 Watts, 3540 GPH at 5-ft. lift; 25-ft. shut-off; maximum 10.8 PSI, 15-ft. cord; 39 lbs.
The HT-6EN Series high-temp effluent pump is specifically designed to handle high-temperature (up to 200°F) effluent wastewater removal in applications such as boiler blowdown, sump pit, or transformer vaults and is backed by an energy-efficient 1/3 horsepower motor with thermal overload protection rated for continuous duty.

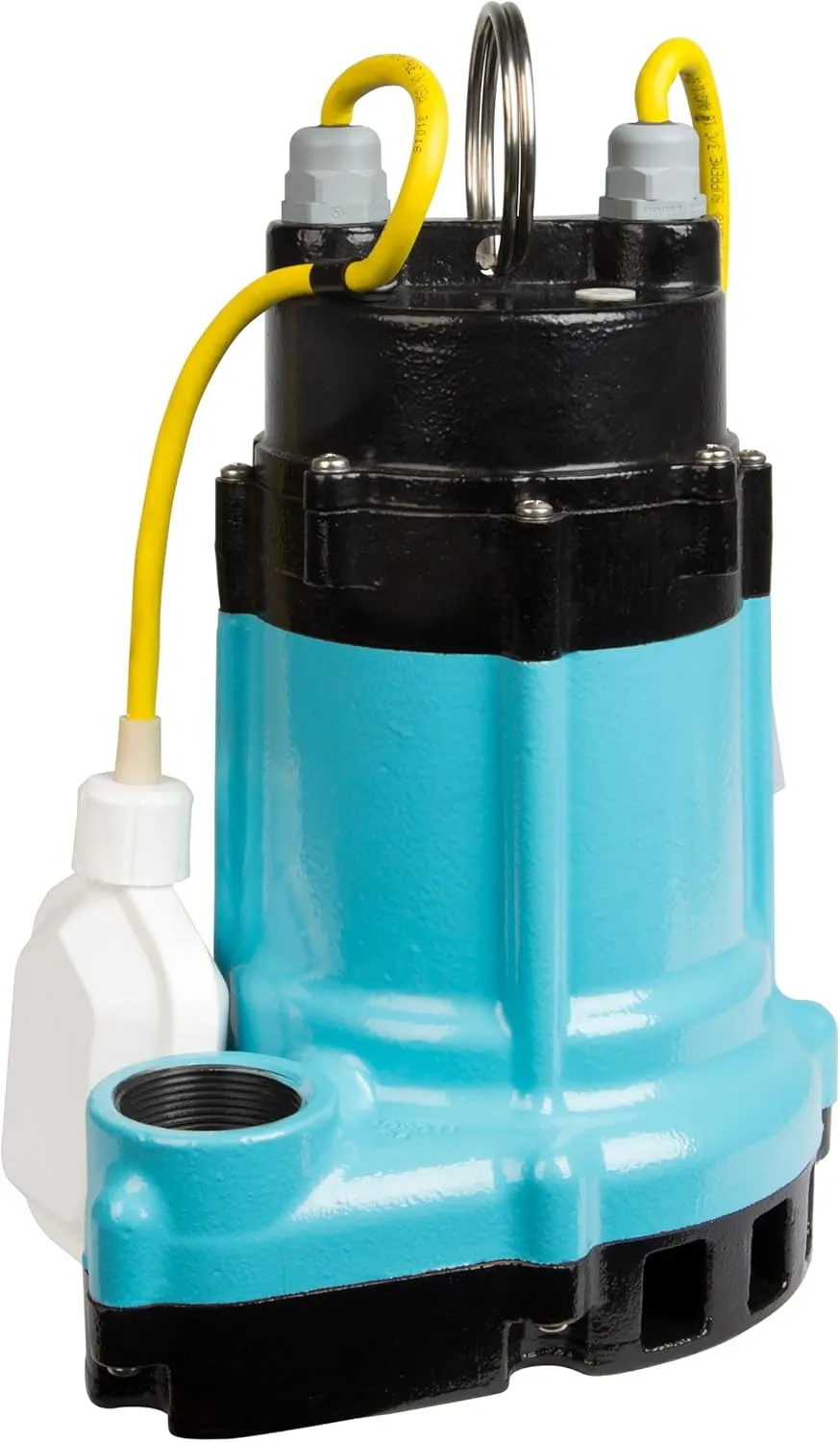

The 115 Volt, heavy-duty epoxy-coated cast iron HT-6EN-CIA-FS delivers up to 3540 GPH and comes with a built-in mechanical float switch specifically designed for high temperatures. The switch activates the pump when the liquid level reaches between 9 and 14 inches and shuts the pump off when the liquid level reaches 2 to 4 inches. It comes equipped with a 1-1/2-inch FNPT discharge and a 15-ft. cord. The HT-6EN-CIA-FS can handle up to 3/4-inch semi-solids.
